ECO2 CLIP MORTAR™

ECO2 CLIP MORTAR™ is an industry-first mortar engineered specially for Clip Leveling Spacers. The product is highly polymer-modified and ultra-creamy, designed to wet into both the substrate and tile. ECO2 CLIP MORTAR is silica sand-free, single-component, sag/slump-resistant and ideal for vertical and horizontal installation of normal and large-format non-vitreous, semi-vitreous and impervious tiles, including porcelain and most natural stone with or without Clip Leveling Spacers. The ECO2 CLIP MORTAR formula contains a blend of high-performance ingredients and light-weight recycled glass aggregates that work to create the mortar’s sag and slump resistance; as well as create an incredibly easy, creamy-smooth handling mortar that dramatically increases job site efficiency. A 45 lb (20.4 kg) of ECO2 CLIP MORTAR bag offers the SAME VOLUME/COVERAGE as a 50 lb (22.7 kg) bag of conventional mortar, allowing for easier carrying and transport.

Green Features

  • 51% recycled content
  • 23 lbs (10.5 kg) of glass per bag diverted from the landfill
  • 100% silica sand-free
  • Solvent-free – no VOCs
  • Will not promote mold, mildew or bacteria growth
  • Contributes to LEED® and WELL® objectives and requirements

Packaging

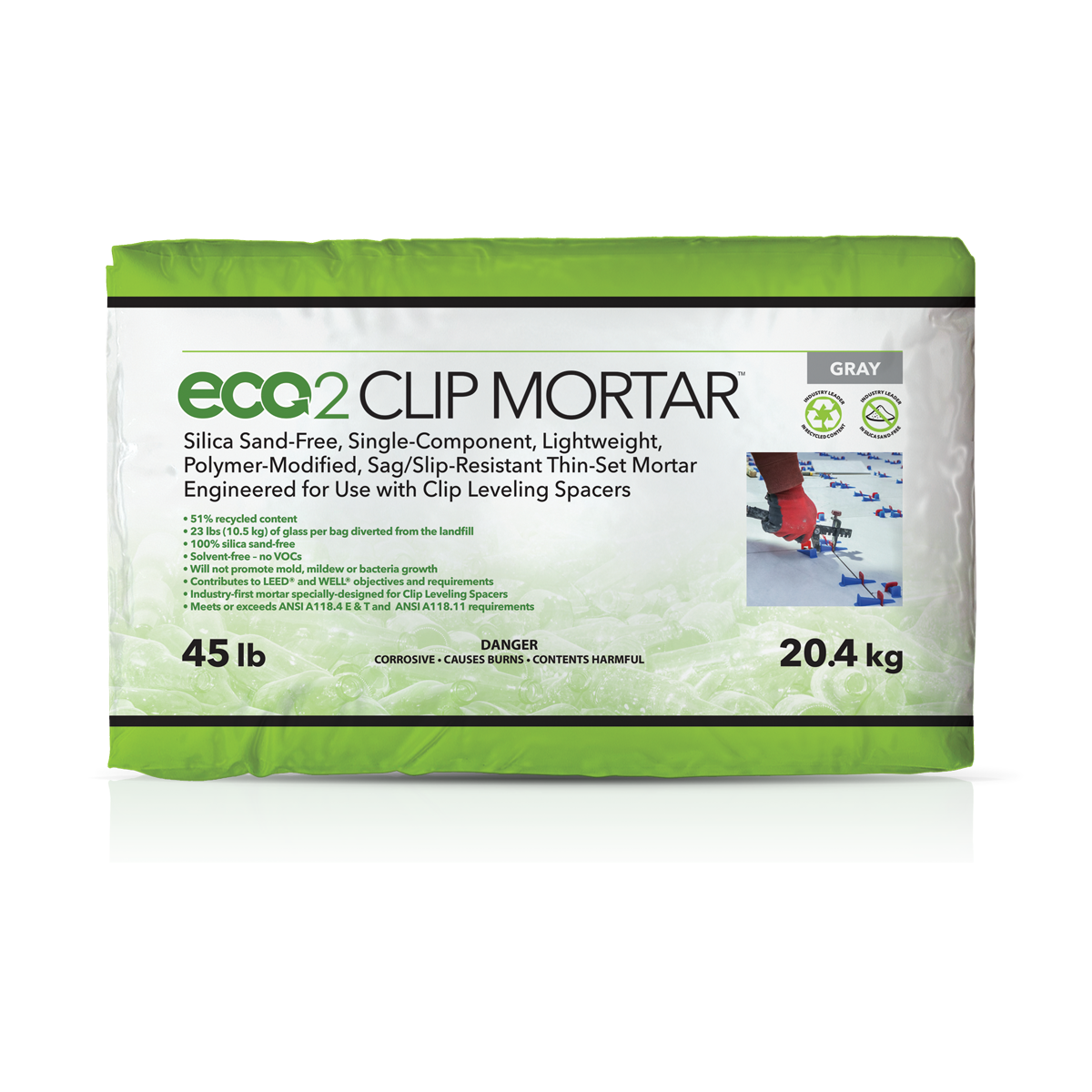

45 lb (20.4 kg) bag, gray or white

This product is currently out of stock and unavailable.

SKU: 123-3 Category: Product ID: 6811

Features

ECO2 CLIP MORTAR™ is an industry-first mortar engineered specially for Clip Leveling Spacers. The product is highly polymer-modified and ultra-creamy, designed to wet into both the substrate and tile. ECO2 CLIP MORTAR is silica sand-free, single-component, sag/slump-resistant and ideal for vertical and horizontal installation of normal and large-format non-vitreous, semi-vitreous and impervious tiles, including porcelain and most natural stone with or without Clip Leveling Spacers. The ECO2 CLIP MORTAR formula contains a blend of high-performance ingredients and light-weight recycled glass aggregates that work to create the mortar’s sag and slump resistance; as well as create an incredibly easy, creamy-smooth handling mortar that dramatically increases job site efficiency. A 45 lb (20.4 kg) of ECO2 CLIP MORTAR bag offers the SAME VOLUME/COVERAGE as a 50 lb (22.7 kg) bag of conventional mortar, allowing for easier carrying and transport.

Green Features

  • 51% recycled content
  • 23 lbs (10.5 kg) of glass per bag diverted from the landfill
  • 100% silica sand-free
  • Solvent-free – no VOCs
  • Will not promote mold, mildew or bacteria growth
  • Contributes to LEED® and WELL® objectives and requirements

Performance Features

  • Industry-first mortar specially-designed for Clip Leveling Spacers
  • Ultra-creamy
  • Exceptional contact with both substrate and tile
  • Extended open time
  • Sag/slump resistant
  • For setting normal and large-format non-vitreous, semi-vitreous, vitreous and impervious ceramic and porcelain tiles, mosaics, pavers and quarry tiles with or without Clip Leveling Spacers
  • For setting marble and granite dimension stones with or without Clip Leveling Spacers (see LIMITATIONS)
  • Performance exceeds requirements for institutional, commercial and residential applications
  • Meets or exceeds ANSI A118.4 E & T and ANSI A118.11 requirements

Packaging
45 lb (20.4 kg) bag, gray or white

Performance

WORKING PROPERTIES (@73°F [23°C] and 50% RH)
Pot life
> 1 hour
Open time
≥ 30 minutes
Initial cure
> 24 hours
Final cure
28 days
Adjustability
35-45 minutes

PHYSICAL PROPERTIES (@73°F [23°C] and 50% RH)
VOC content
0 g/L
Recycled content
51% recycled content (23 lb per 45 lb bag)
Silica sand content
0%
Silica quartz content
< 0.1%
Shear strength per ANSI A118.4 tests (at 28 days)
    Test
Standard
Results
    Porcelain tile
> 200 psi (1.3 MPa)
> 300 psi (2.1 MPa)
    Quarry tile
> 150 psi (1.03 MPa)
> 300 psi (2.1 MPa)
Shear strength per ANSI A118.11 tests (at 28 days)
    Test
Standard
Results
    Quarry tile to plywood
> 150 psi (1.03 MPa)
> 250 psi (1.7 MPa)
ANSI 118.4E - Extended open time
    Test
Standard
Results
    On concrete
> 75 psi (0.5 MPa)
> 250 psi (1.72 MPa) Pass
ANSI 118.4T - sag resistance
    Test
Standard
Results
    On concrete
< 0.02 in (0.5 mm)
< 0.01 in (0.3 mm) Pass
Approximate coverage per 45 lb (20.4 kg) bag
    Notched trowel
Coverage
    1/4" x 1/4" x 1/4" (6 x 6 x 6 mm)
80 ft² (7.5 m²)
    1/4" x 3/8" x 1/4" (6 x 10 x 6 mm)
65 ft² (6.0 m²)
    1/2" x 1/2" x 1/2" (12 x 12 x 12 mm)
40 ft² (3.7 m²)
    3/4" x 9/16" x 3/8" (19 x 14 x 10 mm) U-notch
35 ft² (3.2 m²)
    3/4" x 5/8" x 5/16" (19 x 16 x 8 mm) U-notch
27 ft² (2.5 m²)
Shelf life
12 months if kept in its original unopened packaging and stored in a dry location.

Documentation

Document or Media
Technical Data Sheet
Environmental Data Sheet
COMING SOON
Safety Data Sheet
Third Party Certificate of Recycled Content (LEED® v4)
COMING SOON
Approved HPDC Preparer Health Product Declaration (LEED® v4)
Third party certified letter LEED4 and declared red list
COMING SOON
