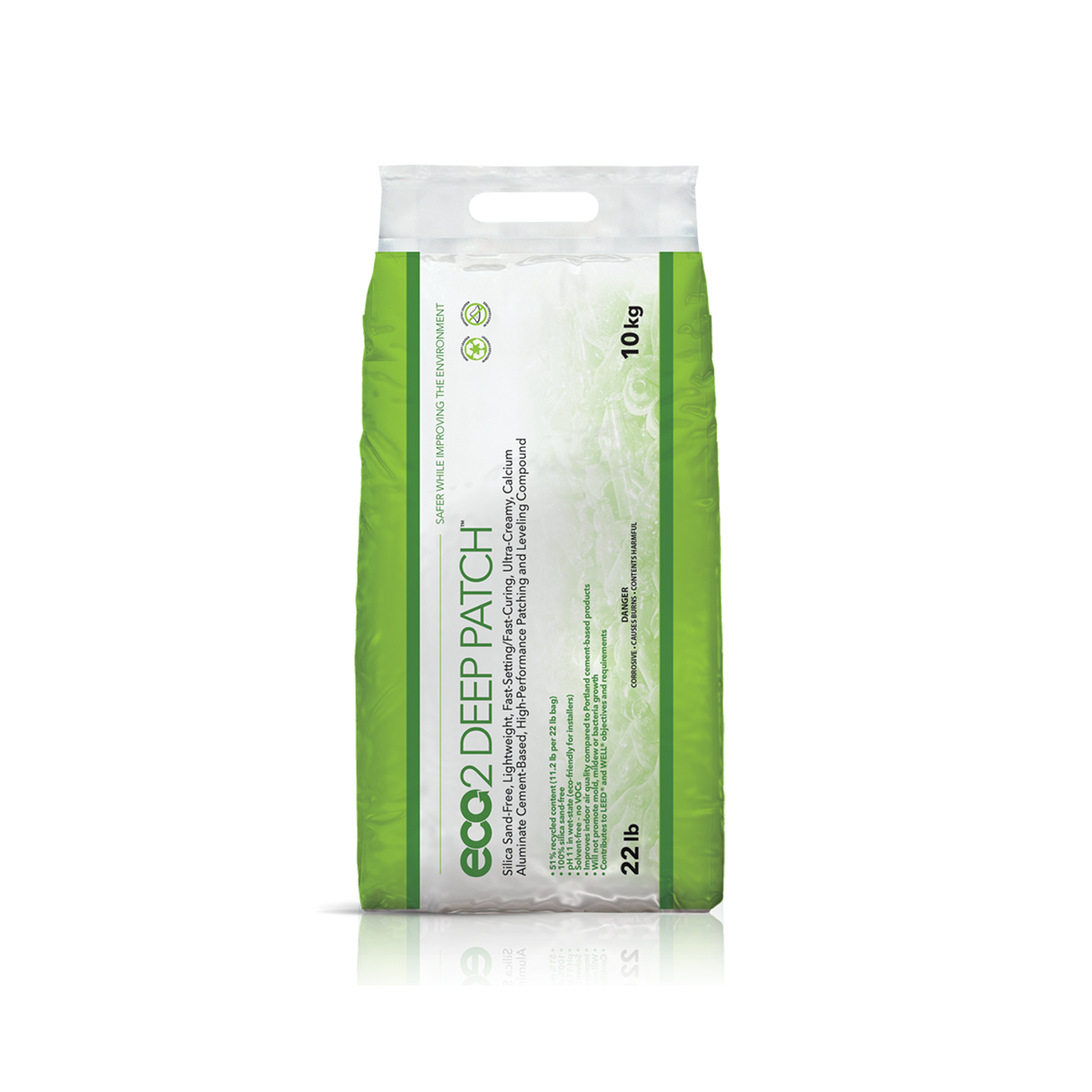

ECO2 DEEP PATCH™

ECO2 DEEP PATCH™ is a silica sand-free, lightweight, fast-setting/fast-curing, ultra-creamy, calcium aluminate cement-based, high-performance patching and leveling compound. When mixed exclusively with ECO2 DEEP PATCH ADDITIVE™, the product is used to patch, level and fill cracks, depressions, voids and holes in substrates up to 1″ (25 mm) deep. ECO2 DEEP PATCH is also 30% lighter than traditional patching compounds.

Green Features

  • 100% silica sand-free
  • 51% recycled content (11.2 lb per 22 lb bag)
  • pH 11 in wet-state (eco-friendly for installers)
  • Solvent-free – no VOCs
  • Improves indoor air quality compared to
  • Portland cement-based products
  • Will not promote mold, mildew or bacteria growth
  • Contributes to LEED® and WELL® objectives and requirements

Packaging
22 lb (10 kg) bag (same coverage as a 40 lb [18 kg] bag of traditional patching compound due to lightweight content)

This product is currently out of stock and unavailable.

SKU: 123-1-1-1-1 Category: Product ID: 6306

Features

ECO2 DEEP PATCH™ is a silica sand-free, lightweight, fast-setting/fast-curing, ultra-creamy, calcium aluminate cement-based, high-performance patching and leveling compound. When mixed exclusively with ECO2 DEEP PATCH ADDITIVE™, the product is used to patch, level and fill cracks, depressions, voids and holes in substrates up to 1″ (25 mm) deep. ECO2 DEEP PATCH is also 30% lighter than traditional patching compounds.

Green Features

  • 100% silica sand-free
  • 51% recycled content (11.2 lb per 22 lb bag)
  • pH 11 in wet-state (eco-friendly for installers)
  • Solvent-free – no VOCs
  • Improves indoor air quality compared to
  • Portland cement-based products
  • Will not promote mold, mildew or bacteria growth
  • Contributes to LEED® and WELL® objectives and requirements

Performance Features

  • 30% lighter than traditional patching compounds
  • 22 lb (10 kg) bag has the same coverage as a 40 lb (18 kg) bag of traditional patching compound due to lightweight content
  • No change to installation method
  • FAST SETTING: install flooring after only
  • 60 – 90 minutes (thin application)
  • Ultra-creamy consistency
  • Apply from featheredge up to 1″ (25 mm) in a single application indoors, and up to 1/4″ (6 mm) outdoors
  • Mix only with ECO2 DEEP PATCH ADDITIVE
  • Hydraulic Calcium Aluminate cement
  • Usable over concrete and exterior-grade plywood surfaces
  • Performance exceeds requirements for interior institutional, commercial and residential applications
  • Accepts all setting materials, adhesives, and floor coverings
  • Can be applied over substrates up to 95% RH per ASTM F2170
  • Blocks pH on substrates with up to 90% RH when installed at 3/16″ thickness or greater

Packaging
22 lb (10 kg) bag (same coverage as a 40 lb [18 kg] bag of traditional patching compound due to lightweight content)

Performance

WORKING PROPERTIES (@73°F [23°C] and 50% RH)
Working time
15 minutes
Final set
45-60 minutes
Time before installing floor covering:
1-3 hours
Time before installing ceramic tile:
1-3 hours

PHYSICAL PROPERTIES (@73°F [23°C] and 50% RH)
VOC content0 g/L
Recycled content51%
(11.2 lb per 22 lb bag)
Silica sand content0%
Silica quartz content< 0.5%
Volume change (meets ASTM C-928) @ 28 days, dry cured< -0.05%
Flexural strength (ASTM C-348) @ 28 days> 1,000 psi (> 6.9 MPa)
Tensile bond strength (ASTM C1583 / CSA CAN/A23.2-6B) @ 28 days > 300 psi (2 MPa)
Compressive strength (ASTM C-109)
  3 hours> 1,500 psi (10.3 MPa)
  28 days> 4,000 psi ( 27.6 MPa)
28 days-dried weight 1.5 lb per ft² x 1/4'' thick
(7.1 kg per m² x 6 mm)
Wet density1.1 g/mL
Approximate coverage per 22 lb (10 kg) bag
  ThicknessCoverage
  1/8" (3 mm) 40 ft² (3.7 m²)
  1/4" (6 mm)20 ft² (1.9 m²)
  1/2" (13 mm)10 ft² (0.9 m²)
Shelf life6 months if kept in its original unopened packaging and stored in a dry location.

Documentation

Document or Media
Technical Data Sheet
